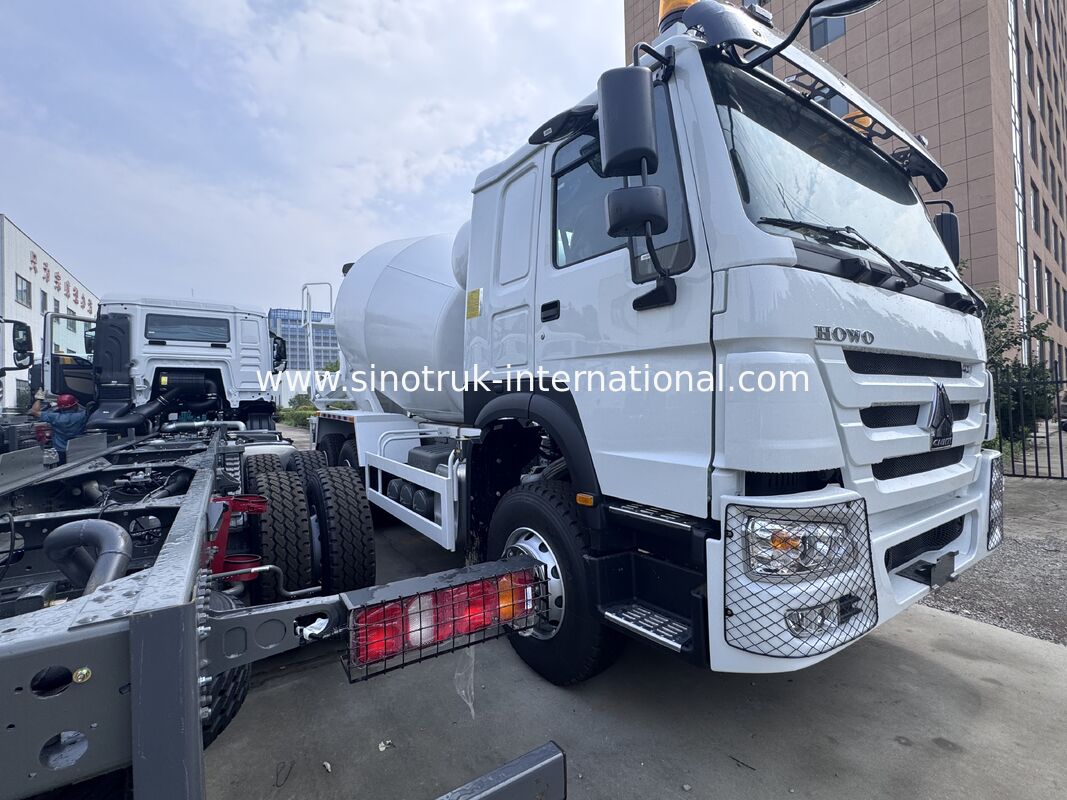

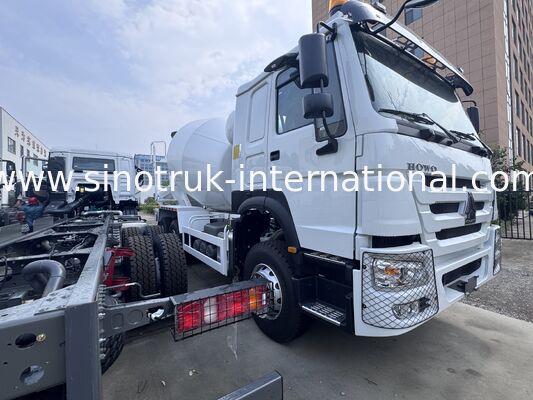

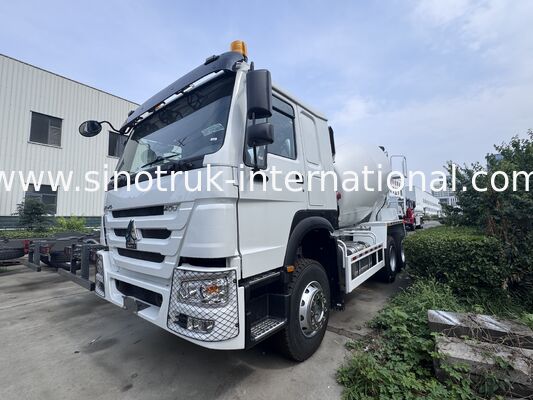

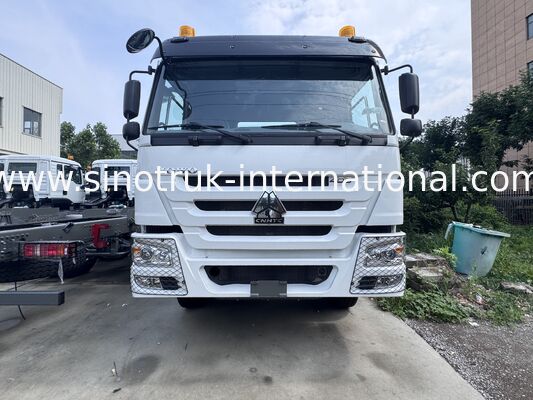

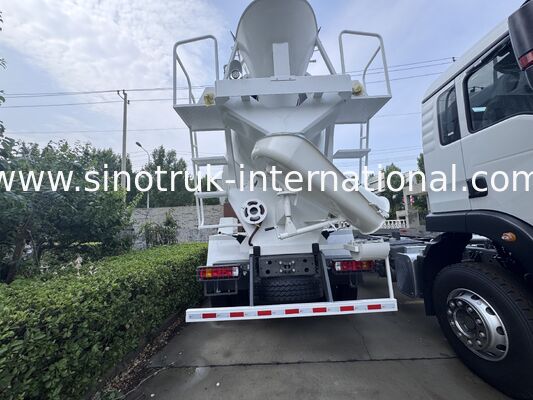

SINOTRUK HOWO 6×4 10wheels Concrete Mixer Truck 400HP Two Warning Lights

SINOTRUK HOWO 6×4 10wheels Concrete Mixer Truck 400HP Two Warning Lights

Détails sur le produit:
Lieu d'origine: Chine
Nom de marque: HOWO
Certification: ISO/3C/BV/IFA/SGS
Numéro de modèle: ZZ1257N3847W
Conditions de paiement et expédition:
Quantité de commande min: 1 unissent
Prix: Négociable
Détails d'emballage: Nu ou épilation à la roro ou à un navire en vrac
Délai de livraison: 25-30 jours ont ensuite reçu votre paiement par anticipation
Conditions de paiement: T/T
Capacité d'approvisionnement: 3000 par mois
Contact
Description de produit détaillée
Modèle: ZZ1257N3847W Capacité du corps du réservoir: 10CBM
Moteur: WP12.400E201,400 HP (euro II) TAXI: HW76
Couleur: Blanc Norme d'émission: 2 euros
Mettre en évidence:

SINOTRUK HOWO 6×4 concrete mixer truck

,

10wheels concrete mixer truck 400HP

,

concrete mixer truck two warning lights


SINOTRUK HOWO 6×4 10wheels Concrete Mixer Truck 400HP Two Warning Lights


Description:


HOWO mixer, suitable for urban construction, highway, railway and other departments. Stirring truck is one of the indispensable important equipment in mechanized construction. The body material is made of special wear-resistant alloy material. The concrete mixing transport uniformity is good. Loading and discharging
Fast speed, low slag discharge rate, reliable hydraulic system, easy to operate, beautiful appearance.




Specification:


Sinotruk Howo Concrete Mixer Truck 10-20CBM 6 x 4 Euro 2 340Hp Construction
Model ZZ1257N3847W
Drive Type 6×4
Engine
WP12.400E201,400 HP( Euro II)
6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine
Displacement : 11.596L
Cabin HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 1×VGD95 ( 9.5 Tons)
Driving Axle 2×HC16, 2×16Tons
Steering BOSCH or China brand hydraulic steering with power assistance.
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

air assistance

Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 3800+1350(mm)
Overall dimension 8075×2600×3000(mm)
Tank body Capacity 10-20CBM
The curb weight 12650(Kg)
Gross weight 31000 kg
Max. speed 102km/h
Color White, red, green, golden and so on.



Applications:


t’s suitable for agitating and transiting concrete, for construction site, road repairing and some other

infrastructure construction business.


Competitive Advantage:


1) Leading product technology, complete functions, excellent performance, reliable quality, easy to operate.
2) Valve body structure optimization, special mold production, beautiful appearance, concrete mixing uniform, uniform discharge, low residual rate.
3) Imported hydraulic pump, hydraulic motor, reducer.
4) The method of multi-phase three-dimensional mixing with large blades is adopted inside the mixer, which is more in line with the characteristics of Chinese concrete, with fast feed and feed speed and lower residue rate
5) Overall structure optimization, low center of gravity, high operating efficiency.
6) Wide product range, tank capacity 6 ~ 18 cubic meters.
7) Choose a variety of auxiliary devices.
8) The tank material is made of the latest generation of high-strength wear-resistant steel for mixing trucks, and the blades are equipped with wear-resistant strips, which makes the service life longer than that of ordinary tanks
9) Rely on strong technical support and first-class technology to make the truck high quality and more reliable
The price is competitive and cost-effective
11) Fast and efficient spare parts supply, to bring you more convenience
12) Fast delivery time, we can quickly and accurately arrange production according to your needs
13) Professional import and export transaction process to improve customs clearance efficiency
